HEPA FILTERS

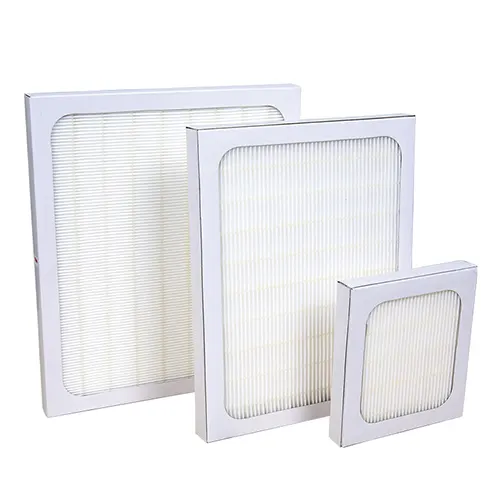

Cardboard Frame HEPA
Affordable High-Efficiency Filtration
HEPA filters
Our cardboard frame HEPA filters provide a cost-effective solution for applications requiring high-efficiency particle capture without the expense of metal framing. Designed with a durable cardboard housing and pleated HEPA-grade filter media, these filters deliver dependable performance while remaining lightweight and easy to install.The filter media — available in fiberglass or polypropylene (PP) — is both water-resistant and self-extinguishing, ensuring safe, reliable operation. A polyurethane adhesive seals the media to the frame, preventing air bypass and maximizing filtration efficiency.
Key Features
HEPA-Level Efficiency – Captures 99.97% of airborne particles as small as 0.3 microns.
MERV Ratings – Available in MERV16 – MERV20, meeting advanced air quality requirements.
Pleated Design – Expanded surface area for greater dust-holding capacity and longer service life.
Durable Yet Lightweight – Strong cardboard frame construction, easy to handle and install.
Temperature Resistance – Withstands continuous use up to 80°C.
Custom Options – Manufactured in standard or custom sizes, from ½ inch to 5 inches thick.
Ideal ApplicationsCardboard frame HEPA filters are widely used in residential, commercial, and industrial systems where cost and performance need to be balanced, including:
Office buildings, schools, and healthcare facilities
Retail and hospitality environments
Manufacturing plants and distribution centers
Residential HVAC systems requiring high-efficiency air cleaning
Why Choose Modern Air Filtration?
Our cardboard frame HEPA filters combine low-cost construction with high-end filtration performance, making them the smart choice for facilities that demand clean air while controlling budget. Built with quality adhesives, premium filter media, and customizable sizing, these filters deliver reliable protection against fine particles, allergens, and airborne contaminants.

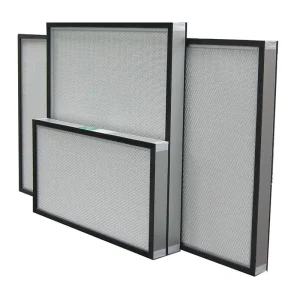

Mini-Pleated HEPA Filters
Compact Design, Maximum Efficiency
At Modern Air Filtration, our mini-pleated HEPA filters are engineered for facilities that demand exceptional air quality in a compact, durable design. The tightly packed pleats provide a significantly larger surface area compared to standard filters, resulting in higher dust-holding capacity, longer service life, and reduced replacement frequency.
Constructed with ultra-fine fiberglass or high-efficiency polypropylene (PP) filter media, these filters are water-resistant, flame-retardant, and heat-resistant up to 80°C. To ensure maximum performance, each filter is sealed with high-grade adhesive to eliminate air bypass and is individually tested using precision laser scanning technology.
The result: a rigid, aerodynamic structure that combines high efficiency with low air pressure drop, delivering strong airflow, reliable ventilation, and cleaner air.
Key Features
-
Ultra-High Filtration Efficiency – Rated H13 to UH20 (MERV17–MERV20), capturing up to 99.9995% of particles as small as 0.3 microns.
-
Compact Pleat Design – Increases filter surface area multiple times over standard filters, boosting performance and extending service life.
-
Durable & Safe Materials – Made from ultrafine glass fibers or high-efficiency PP paper that are waterproof and flame-retardant.
-
Heat Resistance – Withstands continuous operating temperatures up to 80°C.
-
Customizable Options – Available in standard sizes and custom-built configurations to meet unique system requirements.
-
Frame Choices – Offered in aluminum, stainless steel, or galvanized steel frames for strength and stability.
Ideal Applications
Mini-pleated HEPA filters are designed for critical environments where superior air quality is essential, including:
-
Hospitals, clinics, and pharmaceutical cleanrooms
-
Laboratories and research facilities
-
Electronics and semiconductor manufacturing
-
Aerospace, defense, and precision industries
-
Commercial buildings with advanced HVAC systems
Why Choose Modern Air Filtration’s Mini-Pleated Filters?
With their compact design, ultra-high efficiency, and extended service life, our mini-pleated HEPA filters provide the perfect balance of performance and reliability. By investing in advanced testing and quality control, Modern Air Filtration ensures that each filter delivers consistent, proven results in demanding environments.

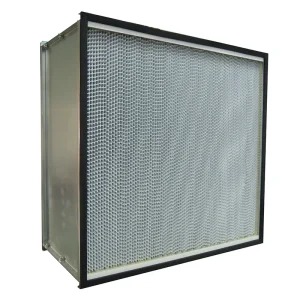

Precision Filtration with Rugged Durability
Our HEPA filters with aluminum separators are engineered for industries and facilities where maximum efficiency and uncompromising reliability are essential. Constructed with high-quality glass fiber media and supported by corrugated aluminum or paper separators, these filters deliver superior particle capture while maintaining low airflow resistance.
Each pleat is carefully spaced to optimize performance, with safety-rolled separator edges that protect the media from puncture and extend filter life. To ensure leak-free operation, every unit is sealed with an EVA gasket and individually leakage-tested before leaving the factory, accompanied by a full test report for guaranteed compliance.
Key Features
-
High-Efficiency Glass Fiber Media – Captures ultra-fine particles with unmatched consistency.
-
Durable Construction – Frame options include extruded aluminum or galvanized steel for strength and longevity.
-
Separator Options – Choice of corrugated aluminum or paper separators, designed for uniform pleat spacing and minimal resistance.
-
Guaranteed Seal – EVA gasket ensures zero leakage and protects against transit damage.
-
Individually Tested – Every filter undergoes strict leakage testing with a full performance report provided.
-
Performance Ratings:
-
H13 (EN1822): ≥99.99% @ 0.3 μm
-
H14 (EN1822): ≥99.995% @ 0.3 μm
-
Ideal Applications
These HEPA filters are widely used in critical clean air environments that demand exceptional particle removal, including:
-
Electronics and semiconductor manufacturing
-
Precision machinery production
-
Pharmaceutical and biotech facilities
-
Hospitals, clinics, and healthcare environments
-
Food processing and packaging plants
-
Aerospace, laboratory, and industrial cleanrooms

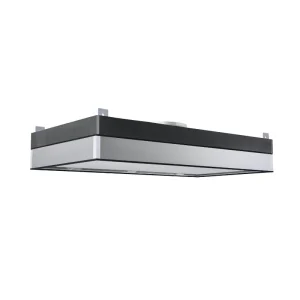

Pharma Ceiling T-Bar Style HEPA Filters
Cleanroom-Ready Filtration for Pharma & Healthcare
Our Pharma Ceiling T-Bar Style HEPA filters are specially engineered for pharmaceutical cleanrooms, laboratories, and healthcare facilities where ultra-clean air is critical. Designed to fit seamlessly into standard ceiling grid (T-bar) systems, these filters combine high-efficiency glass fiber media with a lightweight, rigid frame for secure installation and reliable performance.
Each filter is constructed with corrugated aluminum or paper separators that ensure even pleat spacing, reduced pressure drop, and long service life. The pleats are protected by safety-rolled edges, preventing media damage during handling and operation. A precision gel-seal or EVA gasket ensures airtight fit into the ceiling grid, eliminating leakage and maintaining required cleanroom classifications.
Every unit is individually leakage-tested and supplied with a performance certificate, giving you complete confidence in compliance for regulated environments.
Key Features
-
High-Efficiency Glass Fiber Media – Provides ≥99.99% (H13) to ≥99.995% (H14) efficiency @ 0.3 μm.
-
T-Bar Ceiling Integration – Drop-in design fits standard ceiling grid systems, simplifying installation.
-
Durable Frame Options – Available in extruded aluminum or galvanized steel, lightweight yet strong.
-
Guaranteed Airtight Seal – Gel-seal or EVA gasket prevents leakage and ensures cleanroom integrity.
-
Leakage Tested – Each filter is individually tested and supplied with a full report for regulatory compliance.
-
Heat Resistance – Operates reliably up to 80°C.
Ideal Applications
Pharma ceiling HEPA filters are designed for critical clean environments, including:
-
Pharmaceutical production facilities
-
Biotechnology and life sciences labs
-
Hospital operating rooms and isolation areas
-
Electronics, semiconductor, and precision manufacturing cleanrooms
-
Food and beverage processing requiring sterile air

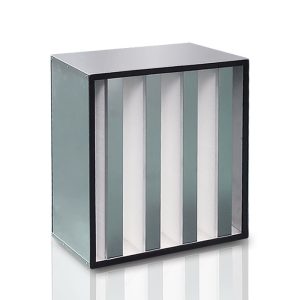

V-Bank HEPA Filters
High Airflow, Low Pressure Drop
Our V-Bank HEPA filters are engineered for high-volume air handling systems that demand both superior efficiency and energy savings. Featuring a multi-V configuration, these filters maximize the available surface area of the media, reducing resistance to airflow while maintaining exceptionally high particle capture rates.
Constructed with premium glass fiber or polypropylene (PP) media, the pleats are arranged in a rigid V-shape supported by a durable metal frame. This design not only improves airflow but also extends service life, reducing the frequency of filter changeouts.
Each filter is individually tested to ensure compliance with HEPA standards, guaranteeing clean and reliable performance in demanding environments.
Key Features
-
High-Efficiency Media – Captures ≥99.99% (H13) to ≥99.995% (H14) of particles ≥0.3 microns.
-
Low Pressure Drop – V-bank design minimizes resistance, lowering HVAC energy costs.
-
Extended Service Life – Increased media surface area holds more dust and extends replacement intervals.
-
Durable Frame – Available in galvanized steel or aluminum for strength and stability.
-
Heat Resistance – Operates reliably up to 80°C.
-
Leak-Free Seal – High-quality gasket ensures airtight fit and zero bypass.
-
Tested for Quality – Each unit is factory-tested for efficiency and leakage, with reports provided.
Ideal Applications
V-Bank HEPA filters are the preferred choice for critical and high-airflow systems, including:
-
Cleanrooms and pharmaceutical facilities
-
Hospitals, operating rooms, and isolation wards
-
Electronics and semiconductor manufacturing
-
Food and beverage production
-
Large-scale HVAC systems in airports, labs, and industrial buildings
Why Choose Modern Air Filtration’s V-Bank HEPA?
With their low pressure drop, extended service life, and uncompromising HEPA performance, our V-Bank filters are designed to deliver maximum protection and efficiency. They are the smart solution for facilities looking to improve indoor air quality while reducing long-term operating costs.
